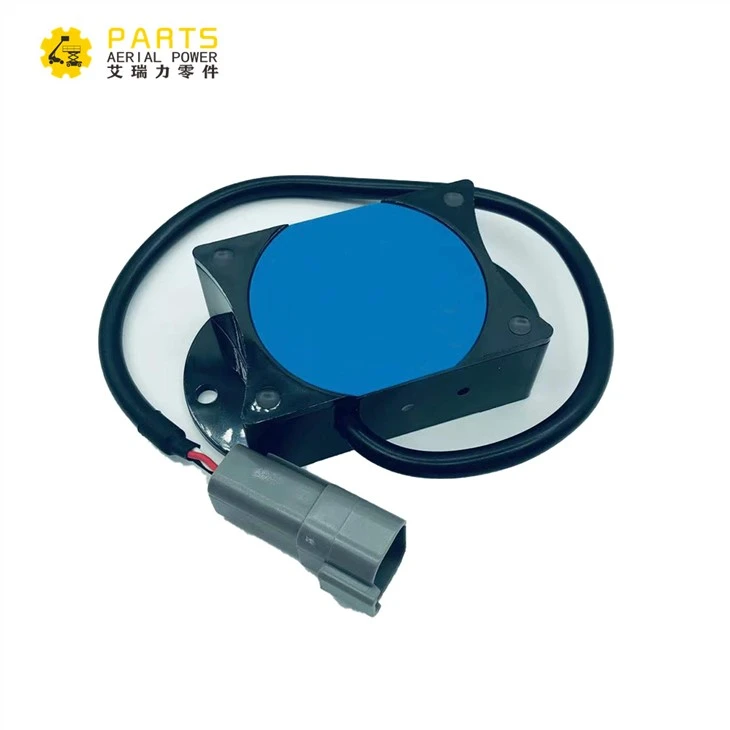

Dingli angle sensor DL-00000695
Part number: DL-00000695
Used for Dingli electric scissor lift JCPT1614HD / JCPT1612HDB / JCPT1612HDS / JCPT1412HD, JCPT1212HD / JCPT1012HD, JCPT1008HD / JCPT0808HD , JCPT0807HD, JCPT1614DC / JCPT1612DCB / JCPT1612DCS / JCPT1412DC, JCPT1212DC/JCPT1012DC, JCPT1008DC/JCPT0808DC, JCPT0807DC, JCPT0708DCS.....
Specifications
Length (mm) | 15 |
Width (mm) | 15 |
Height (mm) | 5 |
Weight (kg) | 0.1 |
Description: Dingli angle sensor for scissor lift
Features
High versatility
Self setting angle reset
High precision
When the angle of the measured object is less than the preset alarm angle, the angle sensor outputs a low voltage signal, and the voltage is about zero volts. When the angle of the measured object is greater than the preset alarm angle, the angle sensor outputs a high voltage signal, and the voltage is equal to the power supply voltage. The zero setting button is used to set the horizontal zero reference point.
