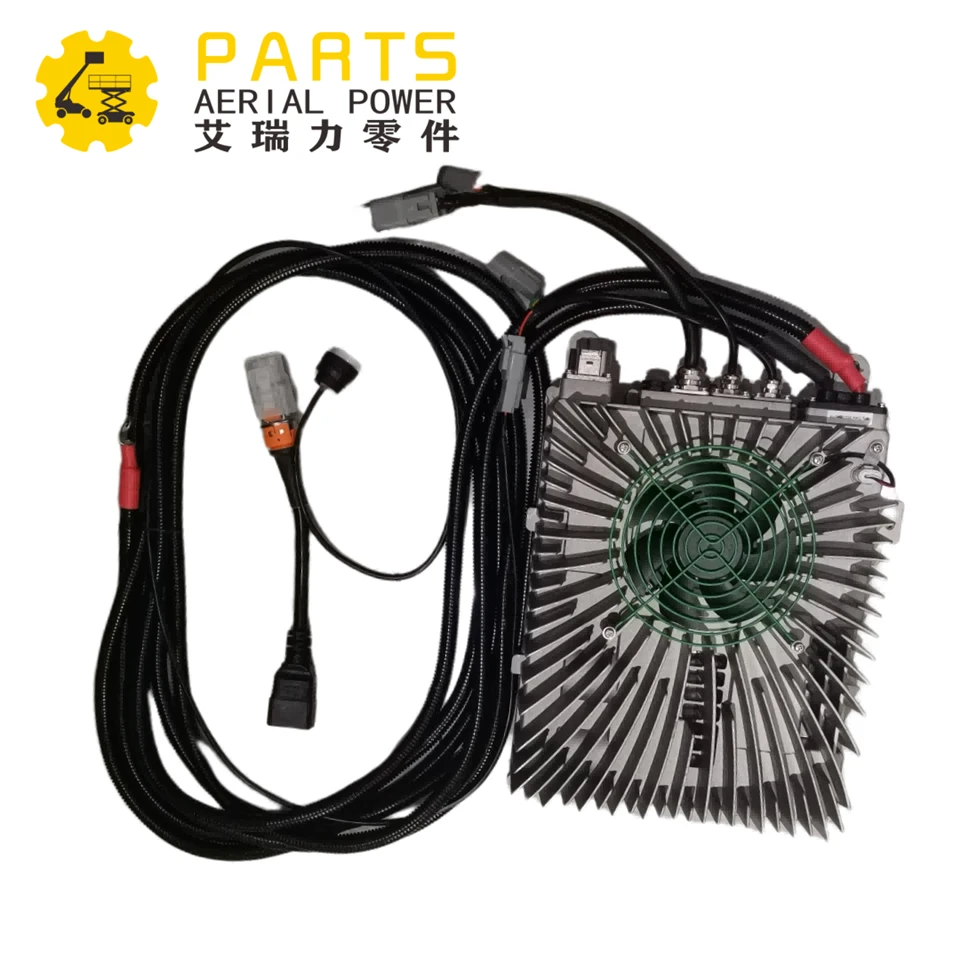

Part number: 48V60A industry charger
Used for：Boom lift,electric lift.
Industrial Car Battery Charger
This charger is a highly reliable and cost-effective charger, which can match lead-acid (FLOOD, AGM, gel) batteries and lithium-ion batteries, and can be assembled in vehicle and non-vehicle fixed mode, with optional CAN bus, new energy automobile, and customized charging curve according to customer needs. Highest voltage protection is 420V for whole series. Applications includes: new energy automobiles, scissor lifts, electric fork-lift truck etc.
| High Reliability(IP66) | Customization curve |
| Engineering design based, each set has been strictly tested, waterproof grade up to IP66. | The charging curve of batteries can be customized according to the customer‘s requirements, in order to achieve best matching requirements. |
| Anti-burst | CAN BUS Communication |
| The whole series is equipped with high and low voltage protection. The minimum protection voltage can reach to 80V, and the maximum protection voltage can reach to 420V (charging voltage range 85-265V). | Blue-tooth, CAN BUS communication, it can be connected to cellphone app through blue-tooth, switch charging curve and review machine parameter. It can be integrated with control system via CAN BUS, to achieve data transmission and control. |
Charger specifications:
| DC output | 48VDC |
| Maximum DC output | 68V |
| voltageMaximum DC output | 60A |
| current | 3KW |
| Maximum DC output power | 40V |
| Minimum starting voltage | 10A |
| Maximum lock current | Lead acid(Flood, AGM, GEL),lithium-ion |
| Suitable battery type | Yes |
| Reverse polarity proctection | Yes |
| Short circuit protection | Yes |
Product characteristics:
|
CAN BUS, charger can transmit the working parameters to the control system via CAN BUS.
|
|
External indicator light can be extentered.
|
| Breakthrough protection, it can breakthrough mains voltage up to 420V without damage. |
|
IP66 protection
|
Body dimension: 323.7*277*105mm
Weight(kg): 9.5kgs
Package Specification:
Length (mm) 540mm
Width (mm) 420mm
Height (mm) 210mm
Weight (kg) 11.5
