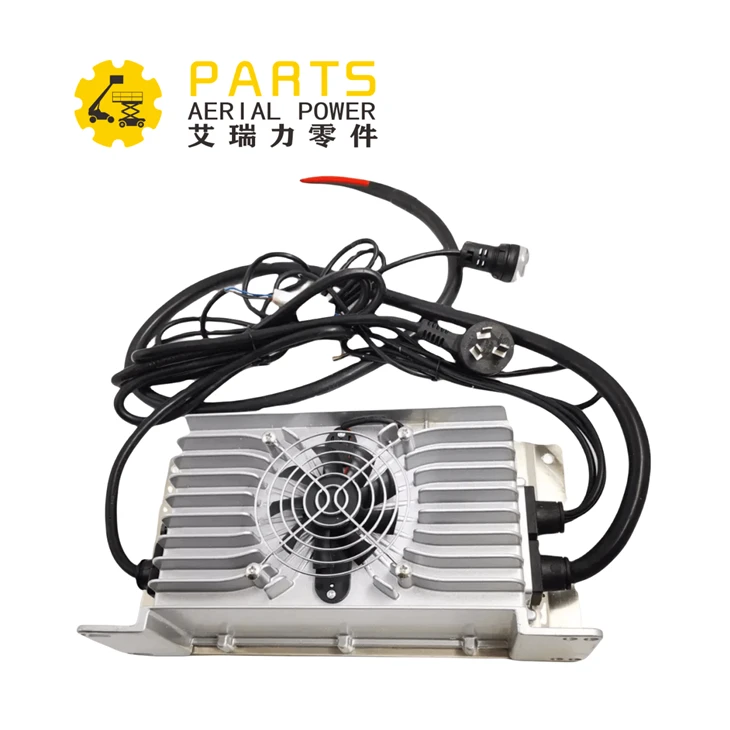

Parts No: 24V30A,48V25A Mantall 05J0000676
Specifications
|
Length (mm) |
450 |
|
Width (mm) |
220 |
|
Height (mm) |
200 |
|
Weight (kg) |
4 |
The charge profile in these units assures full charge to proper specific gravity for maximum battery capacity and run time, as well as battery life. The weight is light and the size is very small. It is very convenient and useful for aerial lift.The chargers design of irrigation fully-sealed structure.The products are suitable for lead-acid batteries.
| Specifications and models | Input Voltage Range | Rated Output Voltage | Max Output voltage | Max Output Current |
| 2430A | AC90~264V | 24V | 33.0V | 30A |
| 4825A | AC90~264V | 48V | 66.0V | 25A |
Technical Parameters
Ac Input Wide Voltage,Range:AC90V to 264V
AC Input Frequency Range:40 to 70Hz
With APFC function,Power Factor:above 0.98
Soft Switching Technology,Efficiency:above 93.0%
Protection Level:IP67
CAN Communication Function (optional)
12V3A Auxiliary Power Supply (optional)
LED Light Indicator for Charging Process
Noise: less than 45 db
