Intelligent Battery Charger EPC602-4830 1500W
Model: EPC602-4830 EPC602 series charger is a highly reliable and cost-effective charger, which can match lead-acid (FLOOD, AGM, gel) batteries and lithium-ion batteries, and can be asse Applications includes: scissor lifts,golf cars, sightseeing cars, cleaning equipment etc. Industrial Car...
Description
Model: EPC602-4830
EPC602 series charger is a highly reliable and cost-effective charger, which can match lead-acid (FLOOD, AGM, gel) batteries and lithium-ion batteries, and can be asse
Applications includes: scissor lifts,golf cars, sightseeing cars, cleaning equipment etc.
Industrial Car Battery Charger
High Reliability |
Anti-Burst |
| Industial-grade standard design,each unit has undergone rigorous testing ,waterproof rating up to IP66,can be worked in the worst conditions. | The whole series is equipped with high and low voltage protection. The minimum protection voltage can reach to 80V, and the maximum protection voltage can reach to 420V (charging voltage range 85-265V). |
CAN BUS Communication |
Customization Curve +External Display |
| The CAN BUS communication function facilitates seamless integration with the control system for data transmission and control. Users can use the backend interface to easily switch between different charging curves and view machine parameters. This enables efficient customization and monitoring of the battery charging process, thereby enhancing overall control and performance. | Battery charging parameters can be customized to meet individual customer needs, ensuring optimal performance. In addition, the external display light cable supports different display modes, allowing a variety of usage options. Customizable charging curves and display compatibility help provide a customized and user-friendly experience that meets different requirements for battery management and monitoring. |
YP602-4830/EPC602-4830 Specifications:
| DC Output | 48V30A |
| Maximum DC Output Voltage | 68V |
| Maximum DC Output Current | 30A |
| Maximum Output Power | 1500W |
| Minimum Starting Voltage | 6VDC |
| Maximum Locking Current | 15A |
| Applicable Battery Type | Lead acid (flood, AGM, GEL), lithium ion |
| Reverse Polarity Protection | YES |
| Short Circuit Protection | YES |
| CAN Communication | YES |
AC Input
| AC Input Voltage Range | 85V-265V |
| Nominal AC Input Voltage | 100-240VAC |
| Nominal AC Input Frequency | 50/60Hz |
| Maximum AC Input Current | 13.5A |
| Power Factor | > 0.99 under heavy load |
Regulatory
| Efficiency | MAX 94% |
| Safety | CE ,CB ,ETL |
Mechanical
| Dimensions | 226×180×146mm |
| Weight | 5.2KG |
| AC Input Connector | IEC320-C14 |
| DC Output Connector | M8 red and black wire with ears |
| Cooling | Natural heat dissipation |
| External Indicator Cable | Three green one red,bi-colour light |
Environmental
| Enclosure | IP66 |
| Operating Temperature | -30℃-+65℃(the power will be reduced if the internal temperature of the machine is too high) |
| Storage Temperature | -40℃-+70℃ |

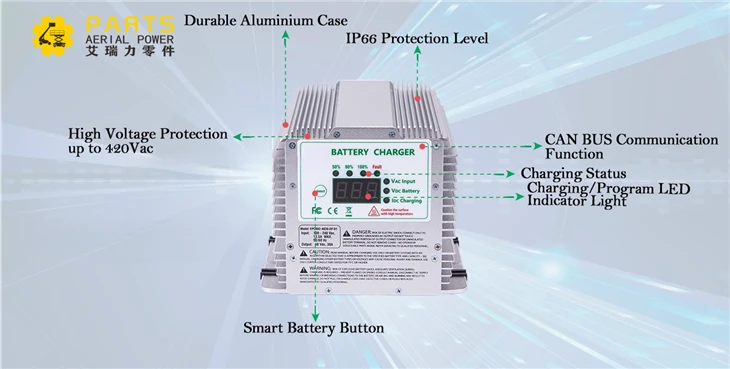

Product Characteristics
- CAN BUS, The charger can transmit the working parameters to the control system through CAN BUS.
- With the repair mode curve, switch curve though the button on charger.
- Digital indicator: It can display the AC voltage, battery voltage, charging current, and charging capacity.
- Anti-burst protection: It can be in protection of up to 420V AC voltage without damage.
