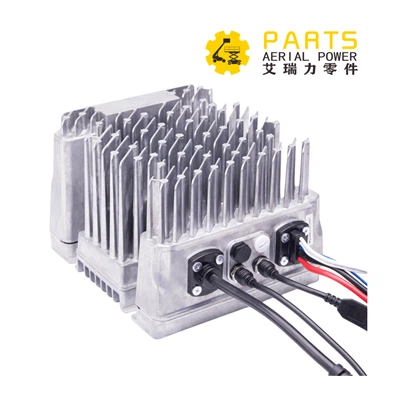

On-Board Battery Charger EPC 2436 850W
Model: EPC2436-EP-01 These series chargers are widely used in scissor lifts, golf carts, sightseeing cars, cleaning equipment and other industries. Its versatility and reliability make it a popular choice for this type of equipment. Technical Parameters EPC 2436 Specifications: AC Input Regulatory...
Description
Model: EPC2436-EP-01
These series chargers are widely used in scissor lifts, golf carts, sightseeing cars, cleaning equipment and other industries. Its versatility and reliability make it a popular choice for this type of equipment.

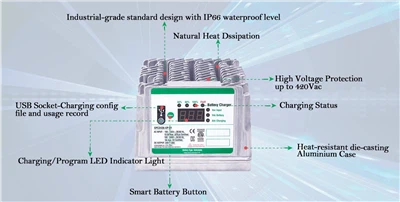

High Reliability |
Anti-Burst |
| Engineering design based, each set has been strictly tested, waterproof grade up to IP66 | The whole system is equipped with high and low voltage protection function as standard, the minimum protection voltage can be up to 80V, the maximum protection voltage can be up to 420V(charging voltage range 85-265V). |
CAN BUS Communication |
Customization Curve |
| CAN BUS communication, it can be seamlessly integrated with control system, to achieve data transmission and control. | The charging curve of batteries can be customized according to the customer's requirements, in order to achieve best matching requirements. |
Digital Display |
USB Data Memory Function |
| View charging status on the LED display ,and easily change charging curve with the push-button. | Users can update the upgrade programme, change the charging curve, download the charging record and other functions with a USB disk through the USB port. |
Technical Parameters
| AC Input Wide Voltage | 85V-265V |
| High Voltage Protection Voltage | 270Vac-420Vac |
| AC Input Frequency | 50-60Hz |
| Safety | CE, CB, ETL, KC |
| Efficiency | 94% |
| Protection Level | IP66 |
| Working Temperature | -30℃-+65℃ |
| Dimension | 200×180×135mm |
| Net Weight | 4.7KG |
EPC 2436 Specifications:
| DC Output | 24V36A |
| Maximum DC Output Voltage | 34V |
| Maximum DC Output Current | 36A |
| Maximum Output Power | 850W |
| Minimum Starting Voltage | 3V |
| Maximum Locking Current | 15A |
| Applicable Battery Type | Lead acid (flood, AGM, GEL), Lithium ion |
| Reverse Polarity Protection | YES |
| Short Circuit Protection | YES |
| CAB Communication | YES |
| Voice Reminder | Optional |
AC Input
| AC Input Voltage Range | 85V-265V |
| Nominal AC Input Voltage | 100-240VAC |
| Nominal AC Input Frequency | 50/60Hz |
| Maximum AC Input Current | 12A |
| Power Factor | > 0.99 under heavy load |
Regulatory
| Efficiency | MAX 94% |
| Safety | CE ,CB , ETL ,KC |
Mechanical
| Dimensions | 200×180×135mm |
| Weight | 4.7KG |
| AC Input Connector | IEC320-C14 |
| DC Output Connector | M8 red and black wire with ears |
| Cooling | Natural heat dissipation |
Environmental
| Operating Temperature | -30℃-+65℃(the power will be reduced if the internal temperature of the machine is too high) |
| Storage Temperature | -40℃-+70℃ |
